Aluminum Base Vacuum Brazing Furnace (Stainless Steel Tube Heater)

This is a vacuum Brazing furnace suitable for aluminum alloy and other low melting point workpieces. It can be used as vacuum furnace for low temperature sintering and heat treatment.

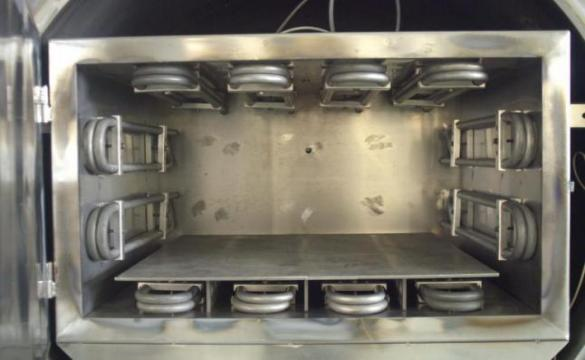

• Stainless steel metal furnace and electric heating alloy tube heating, the highest temperature can reach 750 ℃.
• Electrothermal alloy tube around heating, furnace temperature uniformity, up to plus or minus 5 degrees.
• Clean stainless steel furnace, equipped with mechanical pump + diffusion pump vacuum unit, cold vacuum 10-3pa;Working vacuum is 10-2pa.
• Compared with vacuum furnace of molybdenum foil, this kind of electric furnace has low power, low price, economical use and is an ideal low temperatureBrazing
•

Technical parameters：
