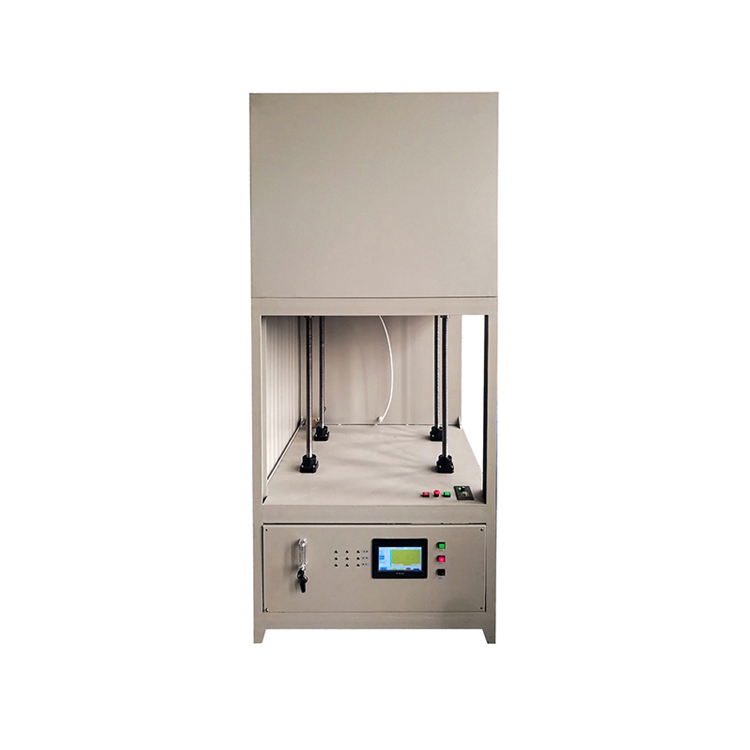

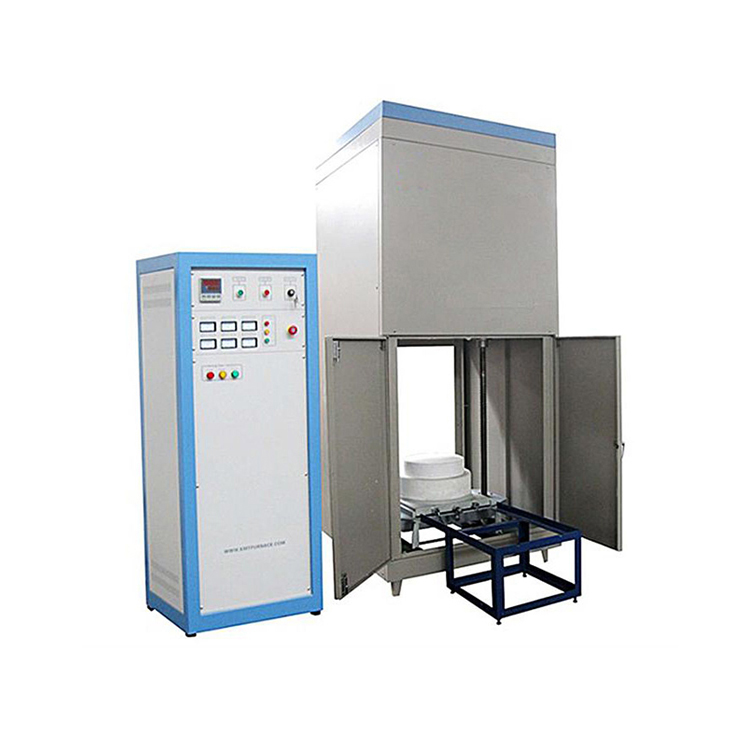

The bottom loading furnace is very convenient to load and unload, and the heating elements are distributed around the furnace evenly,so that the temperature is uniform.The working temperature is from 0°C to 1700°C. The lifting platform is located under the electric furnace, which can lifting manually or automatically.
The furnace can also be made into a Bogie
Hearth Furnace,which is convenient to operate.
The bottom loading electric furnace is wide used for battery materials, electronic ceramics, magnetic materials, non-ferrous metals, chemical raw materials, etc., meanwhile it is suitable for sapphire wafer annealing and zirconia sensor heating treatment in scientific lab or universities etc.
Features:
alumina fiber materials, which can bear the high temperature,
excellent heat preservation performance.
50-segment programmable temperature rise curve.
Additional accessories：
Technical Parameter：1200 Type
| Model | Max. Temp.
(℃) |
Chamber Size
(W*H*D)mm |
Volume
(L) |
Power
(KW) |
Phase | Heating
Elements |
Thermocouple |
| DM-12BL-8 | 1200 | 200*200*200 | 8 | 5 | 1 |
Resistance wire |
K type |
| DM-12BL-12 | 200*200*300 | 12 | 6 | 1 | |||
| DM-12BL-27 | 300*300*300 | 27 | 8 | 1 | |||
| DM-12BL-36 | 300*300*400 | 36 | 10 | 3 | |||
| DM-12BL-64 | 400*400*400 | 64 | 16 | 3 | |||
| DM-12BL-125 | 500*500*500 | 125 | 25 | 3 | |||
| DM-12BL-216 | 600*600*600 | 216 | 36 | 3 |
Technical Parameter：1400 Type
| Model | Max. Temp.
(℃) |
Chamber Size
(W*H*D)mm |
Volume
(L) |
Power
(KW) |
Phase | Heating
Elements |
Thermocouple |
| DM-14BL-8 | 1400 | 200*200*200 | 8 | 5 | 1 | Sic heating elements |
S type |
| DM-14BL-12 | 200*200*300 | 12 | 7 | 1 | |||
| DM-14BL-27 | 300*300*300 | 27 | 9 | 1 | |||
| DM-14BL-36 | 300*300*400 | 36 | 11 | 3 | |||
| DM-14BL-64 | 400*400*400 | 64 | 18 | 3 |
Technical Parameter：1700 Type
| Model | Max. Temp.
(℃) |
Chamber Size
(W*H*D)mm |
Volume
(L) |
Power
(KW) |
Phase | Heating
Elements |
Thermocouple |
| DM-17BL-8 | 1700 | 200*200*200 | 8 | 5 | 1 | MoSi2 heating elements |
B type |
| DM-17BL-12 | 200*200*300 | 12 | 7 | 1 | |||
| DM-17BL-27 | 300*300*300 | 27 | 9 | 1 | |||
| DM-17BL-36 | 300*300*400 | 36 | 11 | 3 | |||
| DM-17BL-64 | 400*400*400 | 64 | 18 | 3 |
Can Be Customized
