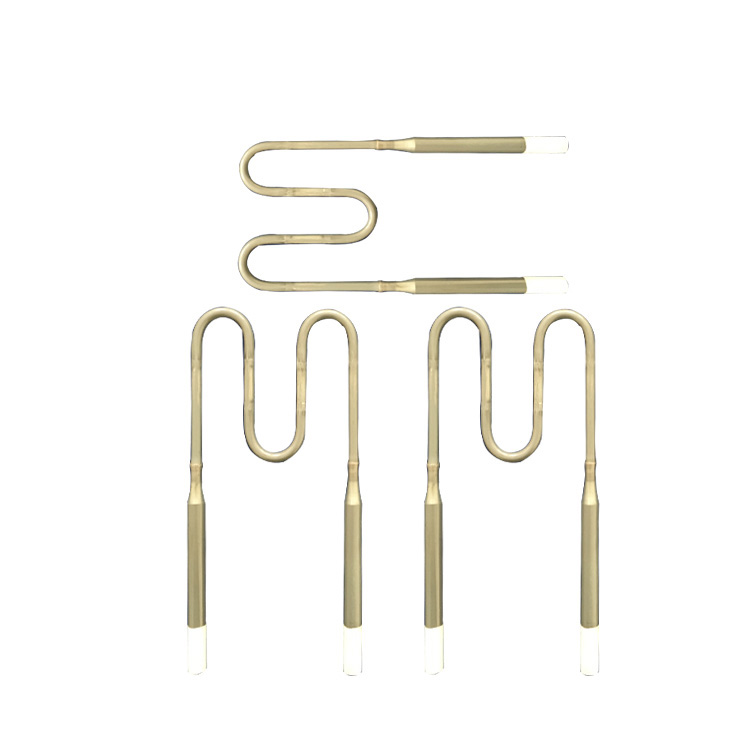

MoSi2 Heating Element

Application: Widely used in research and production of glass, ceramic, refractory, metallurgy, steel-making, crystal, electronic parts, semiconductor material. The model including DM1700 (working temperature 1600℃) and DM1800 (working temperature 1700℃)

Vacuum Industrial Furnace

Other

Accessories

Lab Furnace

Non-vacuum Industrial Furnace

WE CAN HELP YOU !

Our professional team can solve various lifting equipment problems for you!

Feature:

Feature:

The heater have the function of antioxidant and auto repair, and suitable to different kinds of continuous working during oxygen atmosphere.
Moulding by heat process and model size is standard, so we can produce special shape and size according to customer requirement.

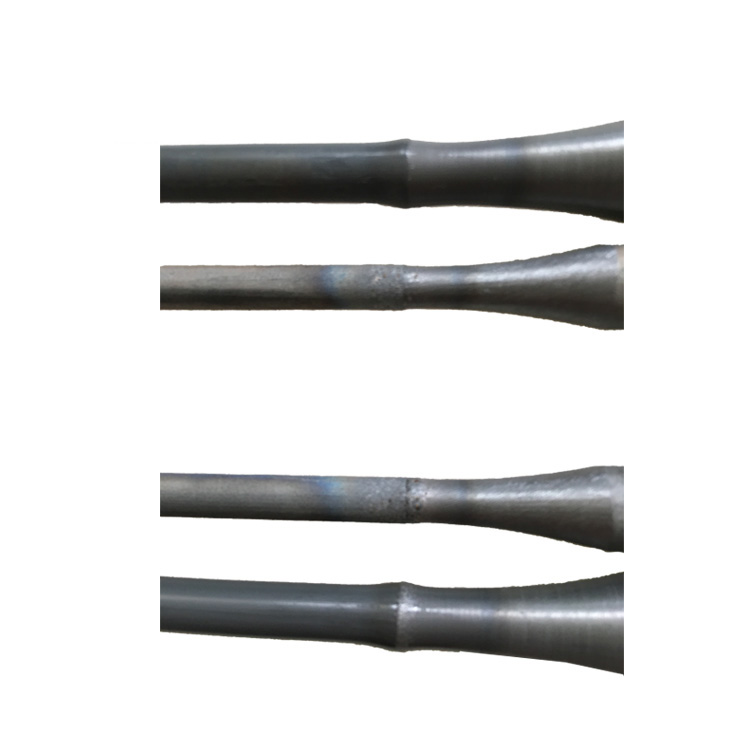

Adopt special process for joint moulding with fasten welding and strong impact resistance.
High density and excellent electrical conductivity, high heating rate and low power consumption.
The old one and new one could using in series.

Technical Parameters

Technical parameter:

Hot Zone Diameter D1	Cooling Zone Diameter D2	Hot Zone Length Le	Cooling Zone Length Lu	Central Distance A
3mm	6mm	80-300mm	80-500mm	25mm
4mm	9mm	80-350mm	80-500mm	25mm
6mm	12mm	80-800mm	80-1000mm	25-60mm
7mm	12mm	80-800mm	80-1000mm	25-60mm
9mm	18mm	100-1200mm	100-2500mm	40-80mm
12mm	24mm	100-1500mm	100-1500mm	40-100mm
Note: 1.Special size is customizable. 2.Delivery time only need 3 days for normal size
Model: DM1700 (working temperature 1600℃) and DM1800（working temperature 1700℃）
Please confirm the D1， D2，Le，Lu，A before order.
