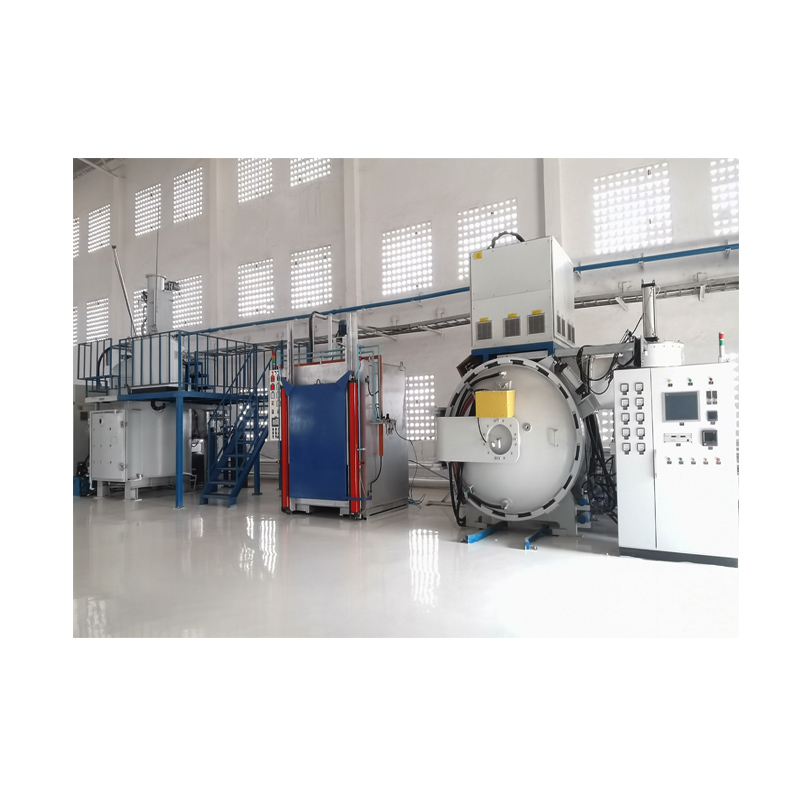

Vacuum annealing furnace is an important heat treatment equipment with a wide range of applications and multiple uses. Vacuum annealing furnace is mainly used for bright annealing of high temperature alloy steel, magnetic materials, non-ferrous metals, stainless steel, titanium alloy and other materials.
| No. | Name | Unit | Instructions |
| 1 | Effective Work Area Size | mm | 600(L)×400(W)×400(H) |
| 2 | Maximum Furnace Loading Capacity | Kg | 190 (With Tray) |
| 3 | Heating power | kw | 100 |
| 4 | Maximum Heating Temperature | ℃ | 960 |
| 5 | Service Temperature | ℃ | ＜900 |
| 6 | Temperature Uniformity | ℃ | ≤±7℃ (850℃, 900℃ Two Temperature Point Measurement) |
| 7 | Temperature Control Accuracy | ℃ | ±1℃ |
| 8 | Limiting Vacuum | Pa | 2×10-2 (Empty, Cold, Fully Oven-Tested) |
| 9 | Rate of Pressure Rise | Pa/h | ≤2 (Empty Furnace, Cold State, Fully Oven After Measurement） |
| 10 | Heating Rate of Empty Furnace | ℃/min | 0-30 (Adjustable Speed) |
| 11 | Air Cooling Pressure Range | bar | 0.8-2bar Adjustable |
| 13 | Bearing Capacity of Shell | Pa | 2 * 10⁵ |
| 14 | Circulating air Cooling Fan | kW | 14 |
| 15 | Cooling Rate of Circulating Gas | min | ≤8min (Full Load Cooling From Brazing Temperature to Below 750℃) |
| 16 | Number of Heating Zones | zone | 1 Heating Area With Independent Temperature Control |
| 17 | Touch Screen Size | 15 Inches | |
| 18 | Temperature Control Meter | Eurotherm(UK) | |
| 19 | Total Installed Power | Kw | 150 |
| 20 | Power Supply Specification | 3*380V+N+PE, 50 Hz | |
| 21 | Gas Condition | kPa | Inert Gas or Nitrogen Pressure up to 200 |
| 22 | Compressed Air Condition | MPa | 0.6-1.2 |
| 23 | Footprint Size | mm | L5000 X B4200 X H3700 |
| 24 | Machine Weight | Kg | ＜4500 |
The effective loading area size and working vacuum can be customized
