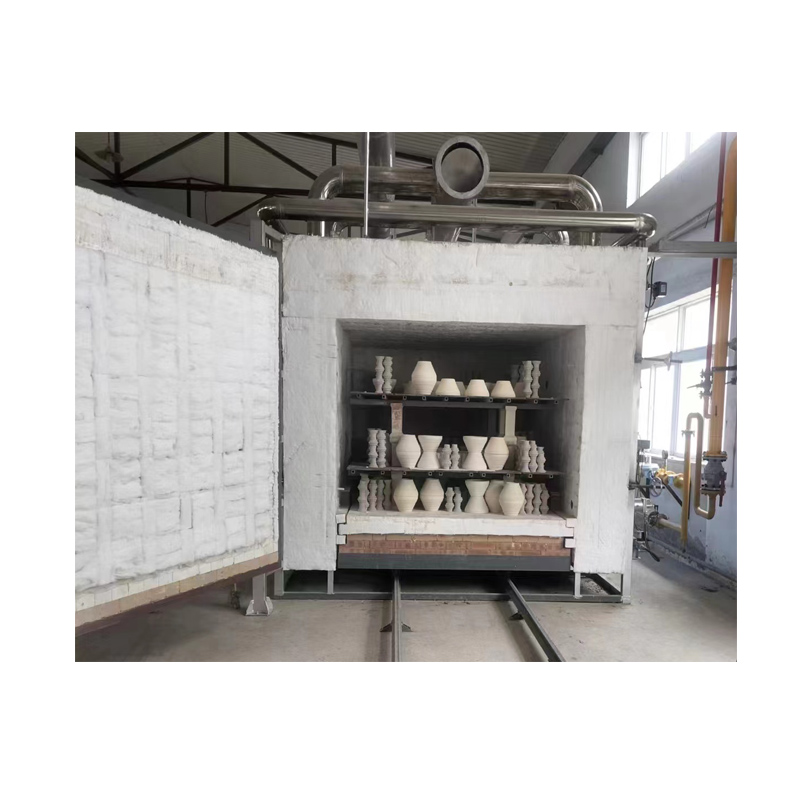

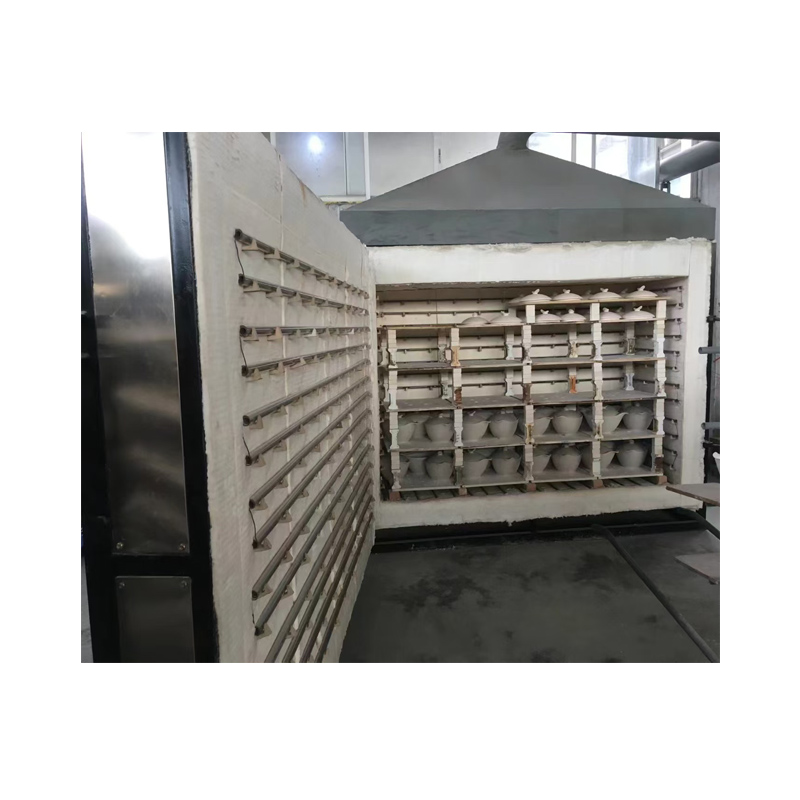

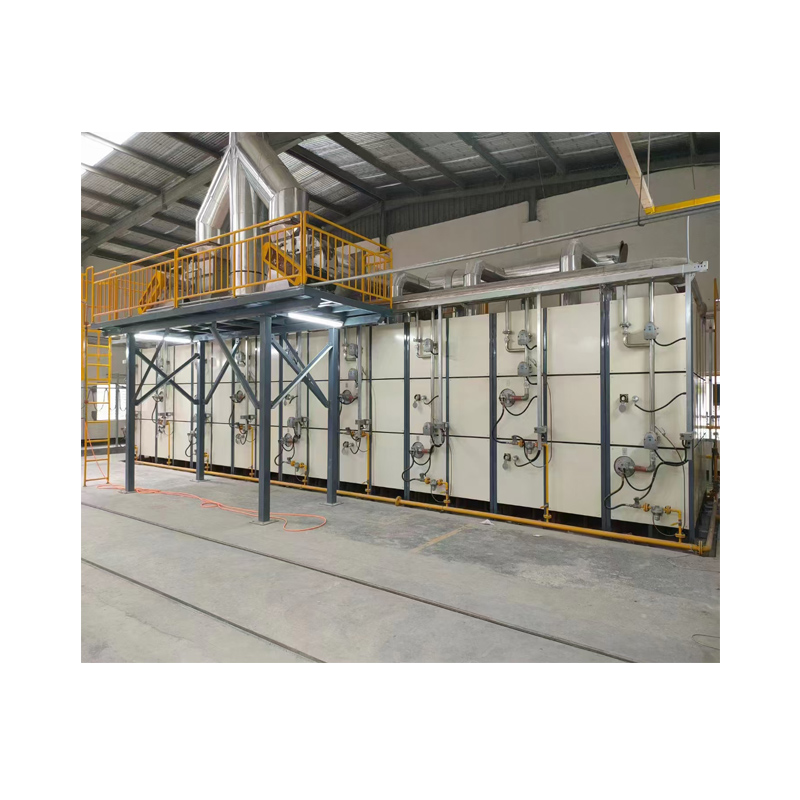

The shuttle kiln is a periodic sintering kiln. The main fuel is natural gas or liquefied petroleum gas
or electricity . The maximum working temperature is 1350 degrees. It is mainly used for ceramic
sintering, such as ceramic tableware, ceramic bathroom ware, and power ceramics,Filter
ceramics, tiles, brick ,etc.
| Item | Name | Parameter |
| 1 | Product Name | Ceramic Tiles Sintering Shuttle Kiln |
| 2 | Model | DM-CBF6.5 |
| 3 | Dimensions of Kiln | 2800*2900*2900mm(L*W*H) |
| 4 | Inner Size of Kiln | 1750*2100*1780mm(L*W*H)/6.5m³ |
| 5 | Effective Loading Zone Size | 1450*1934*1677mm/ 4.7m³ |
| 6 | Product Pad Size | 550*370*10-12mm |
| 7 | Rated Working Temperature | ≤1250℃ |
| 8 | Fuel | Natural Gas |
| 9 | Fuel Calorific Value | 8300KCal/m3 |
| 10 | Number of Kiln Cars | 1 Set |
| 11 | Kiln Car Table Size | 1900*1500mm(W*L) |
| 12 | Kiln Car Drive | Manual Walking |
| 13 | Atmosphere System | Oxidizing Atmosphere |
| 14 | Combustion System | 9 Sets of Burners |
| 15 | Kiln Door Form | Side Open/ Manual |
| 16 | Temperature Control Method | Automatic |
| 17 | Temperature Measuring Point | 9 |
Can Be Customized
